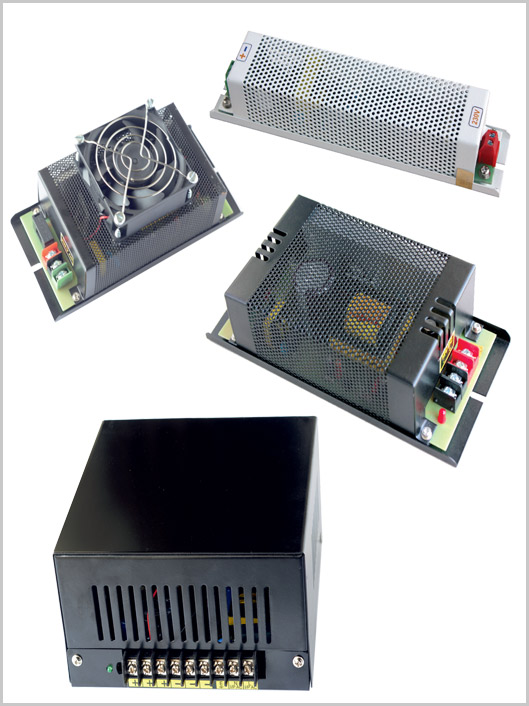

Constant Voltage SMPS Range

  Model No   Cut Put Current   Cut Put Power   Cooling by
  SF-2   2Amp   24w   Free Air Convection
  SF-3   3Amp   36w   Free Air Convection
  SF-4   4Amp   48w   Free Air Convection
  SF-5   5Amp   60w   Free Air Convection
  SF-6.5   6.5Amp   78w   Free Air Convection
  SF-8   8Amp   96w   Free Air Convection
  SF-10   10Amp   120w   Free Air Convection
  SF-14   14Amp   168w   Fan
  SF-20   20Amp   240w   Fan
  Features:
Universal AC I/P Voltage range 85v to 265V AC
Input frequency : 50Hz to 60Hz.
Voltage Tolerance :1%
Power ON Led Indicator.
Short circuit / Over Load / Over voltage protected
High Voltage surge protected.
High efficiency & reliablity.
All the SMPS are 12V Constant Voltage.
We also manufacture 24V SMPS as per order.
