COB SERIES Recessed

COB Series-Recessed (Round)

Housing Material:Aluminium Body Colour : White.
*These items are available in 5W and 12W also.

  Model   SF-1306RM-A
  Power   6W
  Dimension   88mm
  Cut Out   75mm
  Depth   45mm

  Model   SF-1310*/ Eco
  Power   10W
  Dimension   MR 16 TYPE
  Cut Out   -
  Depth   60mm

  Model   SF-1310RF-A*
  Power   10W
  Dimension   100mm
  Cut Out   80mm
  Depth   83mm

  Model   SF-1310RF-C
  Power   10W
  Dimension   65mm
  Cut Out   58mm
  Depth   80mm

  Model   SF-1310RM-A
  Power   10W
  Dimension   90mm
  Cut Out   78mm
  Depth   82mm

  Model   SF-1310RM-B*
  Power   10W
  Dimension   102mm
  Cut Out   90mm
  Depth   103mm

  Model   SF-1312RF-E
  Power   12W
  Dimension   81mm
  Cut Out   73mm
  Depth   100mm

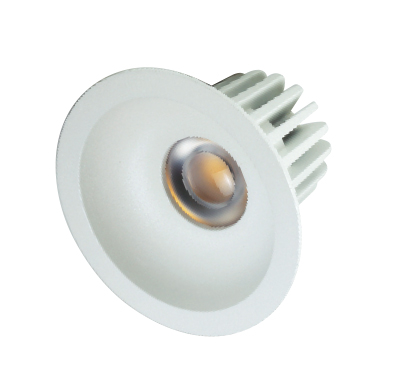

  Model   SF-1315RF
  Power   15W
  Dimension   120mm
  Cut Out   100mm
  Depth   93mm

  Model   SF-1315RF-A
  Power   15W
  Dimension   120mm
  Cut Out   100mm
  Depth   93mm

  Model   SF-1315RM-A
  Power   15W
  Dimension   95mm
  Cut Out   78mm
  Depth   100mm

  Model   SF-1315RM-B
  Power   15W
  Dimension   100mm
  Cut Out   87mm
  Depth   124mm

  Model   SF-1310RM*
  Power   10W
  Dimension   73mm
  Cut Out   63mm
  Depth   65mm

  Model   SF-1315RM
  Power   15W
  Dimension   139mm
  Cut Out   120mm
  Depth   105mm

  Model   SF-1325RM
  Power   25W
  Dimension   160mm
  Cut Out   140mm
  Depth   85mm


  Model   SF-1325RF
  Power   25W
  Dimension   145mm
  Cut Out   120mm
  Depth   75mm

  Model   SF-1325RF-A
  Power   25W
  Dimension   145mm
  Cut Out   120mm
  Depth   70mm

  Model   Power   Dimension   Cut-Out   Depth
  SF-1312RF-D   12W   100   90   61
  SF-1318RF   18mm   130   110   80
  SF-1322RF   22mm   170   155   90
  SF-1340RF   40mm   200   180   95


COB Series-Recessed (Square)

Housing Material:Aluminium Body Colour : White.
*These items are available in 5W and 12W also.

  Model   SF-1304SM
  Power   4W
  Dimension   65mm
  Cut Out   59mm
  Depth   42mm
  Model   SF-1306SM
  Power   6W
  Dimension   83mm
  Cut Out   72mm
  Depth   48mm

  Model   SF-1310SM*
  Power   10W
  Dimension   73mm
  Cut Out   63mm
  Depth   65mm

  Model   SF-1310SM-A*
  Power   10W
  Dimension   90mm
  Cut Out   78mm
  Depth   82mm

  Model   SF-1310SM-B*
  Power   10W
  Dimension   102mm
  Cut Out   85mm
  Depth   103mm
