Model | |||

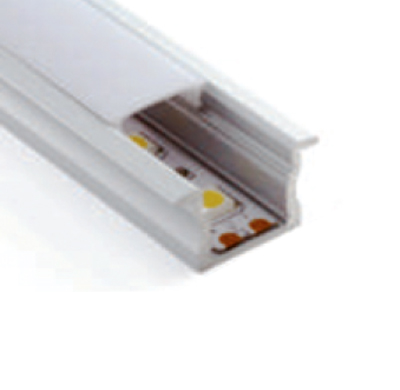

SF-5101 | 23.2x15.3 | ||
Profile Light (12V/ 24V Driver Based)
Direct Profile Light (230 V AC)
Recessed - SF-5101D | Wattage | Height | Width | Cut Out | Length | |||||||
1Ft | 4W | 15.3 | 23.2 | 17.1 | 303 | |||||||
2FT | 10W | 15.3 | 23.2 | 17.1 | 603 | |||||||
3Ft | 15W | 15.3 | 23.2 | 17.1 | 903 | |||||||
4Ft | 20W | 15.3 | 23.2 | 17.1 | 1195 | |||||||
5Ft | 25W | 15.3 | 23.2 | 17.1 | 1493 | |||||||
6Ft | 30W | 15.3 | 23.2 | 17.1 | 1788 |
SF-5102D (Surface) | Wattage | Height | Width | Cut Out | Length | |||||||
1Ft | 4W | 15.3 | 17.1 | NA | 303 | |||||||
2FT | 10W | 15.3 | 17.1 | NA | 603 | |||||||
3Ft | 15W | 15.3 | 17.1 | NA | 903 | |||||||
4Ft | 20W | 15.3 | 17.1 | NA | 1195 | |||||||
5Ft | 25W | 15.3 | 17.1 | NA | 1493 | |||||||
6Ft | 30W | 15.3 | 17.1 | NA | 1788 |
SF-5105D (Corner) | Wattage | Height | Width | Cut Out | Length | |||||||
1Ft | 4W | 16 | 16 | NA | 303 | |||||||
2FT | 10W | 16 | 16 | NA | 603 | |||||||
3Ft | 15W | 16 | 16 | NA | 903 |
Model | Wattage | Height | Width | Cut Out | Length | |||||||
SF-2404 (Recessed) | 4W | 8.0 | 25.0 | 17.1 | 310 | |||||||
SF-2410 | 10W | 8.0 | 25.0 | 17.1 | 610 | |||||||
SF-2415 | 15W | 8.0 | 25.0 | 17.1 | 910 |
Model | Wattage | Height | Width | Cut Out | Length | |||||||
SF-2404S (Surface) | 4W | 8.0 | 19.0 | NA | 303 | |||||||
SF-2410S | 10W | 8.0 | 19.0 | NA | 603 | |||||||
SF-2415S | 15W | 8.0 | 19.0 | NA | 903 |
