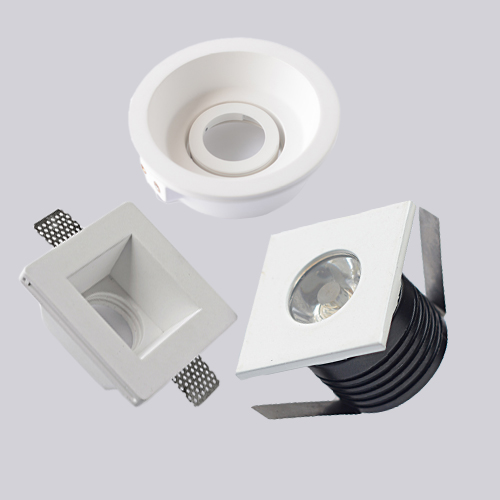

Gypsum Series For COB
Features:
Long life span
No UV light, no flicker,environmentally friendly no mercury
High lighting performance and reliability
| Description | Specification |
|---|---|
| Modal Name | SF-1705S (5 W), SF-1710S (10 W) |
| Dimension / Cut Out | 4.72”x4.72” |
| Depth | 4.13” |
| Beam Angle | 76° |
| Color | WH / WW / NW |
| Description | Specification |
|---|---|
| Modal Name | SF-1705S-A (5 W), SF-1710S-A (10 W) |
| Dimension / Cut Out | 3.94”x3.94” |
| Depth | 2.95” |
| Beam Angle | 76° |
| Color | WH / WW / NW |
| Description | Specification |
|---|---|
| Modal Name | SF-1705R (5 W), SF-1710R (10 W) |
| Dimension / Cut Out | Dia-5.08” |
| Depth | 3.35” |
| Beam Angle | 76° |
| Color | WH / WW / NW |
| Description | Specification |
|---|---|
| Modal Name | SF-1705R-A (5 W), SF-1710R-A (10 W) |
| Dimension / Cut Out | Dia-3.94” |
| Depth | 2.95” |
| Beam Angle | 76° |
| Color | WH / WW / NW |
| Description | Specification |
|---|---|
| Modal Name | SF-1705R-B (5 W), SF-1710R-B (10 W) |
| Dimension / Cut Out | Dia-6.1” |
| Depth | 3.35” |
| Beam Angle | 76° |
| Color | WH / WW / NW |
| Description | Specification |
|---|---|
| Modal Name | SF-1801R (1 W), SF-1803R (3 W) |
| Dimension | Dai-1.38” |
| Cut Out | Dai-1.1” |
| Depth | 1.18” |
| Beam Angle | 47° |
| Color | WH / WW / NW |
| Description | Specification |
|---|---|
| Modal Name | SF-1801S (1 W), SF-1803S (3 W) |
| Dimension | 1.38” x 1.38” |
| Cut Out | Dai-1.1” |
| Depth | 1.18” |
| Beam Angle | 47° |
| Color | WH / WW / NW |
